Divide Colour
Overview[edit]
The Divide family of nodes allows you to divide the colour/scalar/vector coming into the Main Input by the color/scalar/vector coming into Input 2. The division is component-wise, for example with a colour:
-
Input.red divided by Input 2.red
Input.green divided by Input 2.green
Input.blue divided by Input 2.blue
The Divide family of nodes safely handles “division by zero”, which is an invalid operation. In the case of division by zero the node will divide the value by epsilon, which is a very small number greater than zero. This results in a very large valid number output from the node and ensures that your node network will continue to work. If this was not handled by the nodes, the result might be an invalid number, causing problems in the rest of the node network, or the application might even crash.

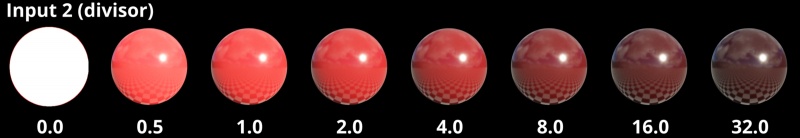

In the graphs below, you can see the mathematical effect of the Divide family of nodes on a given value from the Main Input. When the value assigned to Input 2 is:
- -1.0, the value of the node’s output is the inverse, or mirror, of the Main Input values.
- 0.5, the value of the nodes output is twice as great as the Main Input values.
- 1.0, the value of the node’s output is the same as that of the Main Input values.
- 2.0, the value of the node’s output is half that of the Main Input values.
The following example illustrates that when a colour value (Main Input) is divided by the value 1 (Input 2) the colour remains the same, but when divided by values less than 1 the surface colour brightens, and when divided by values greater than 1, the surface colour darkens.

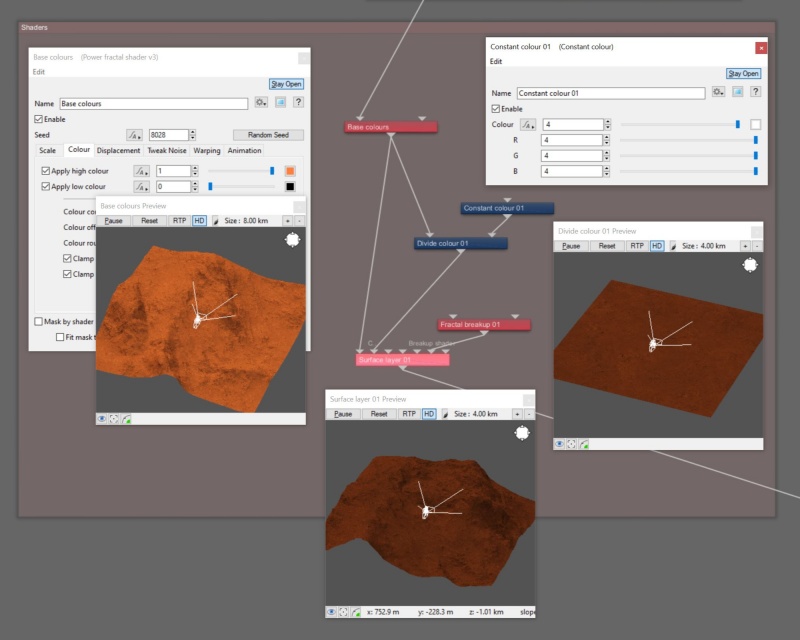

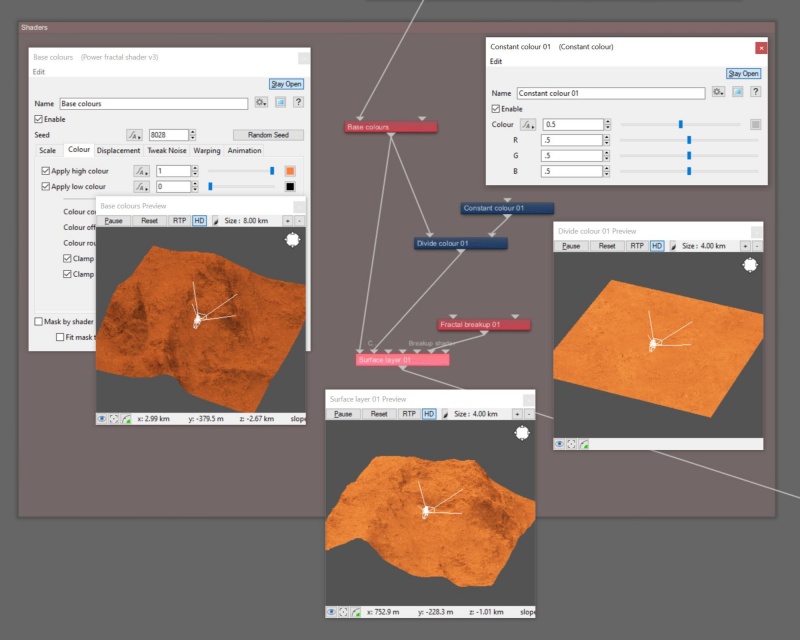

In this example, the value assigned to Input 2 is 0.5, which results in a colour value that is twice as bright as the source colour value from the Main Input.
In this image, the value assigned to Input 2 is greater than 1, which results in a colour value that is darker than the source colour value from the Main Input.

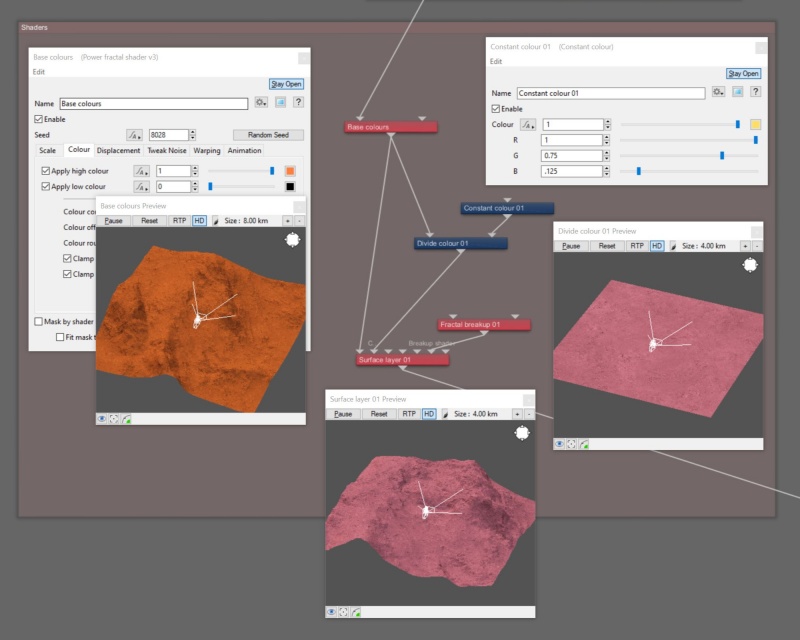

The component values (RGB) assigned to Input 2 don’t have to be the same value, as the division is component-wise.

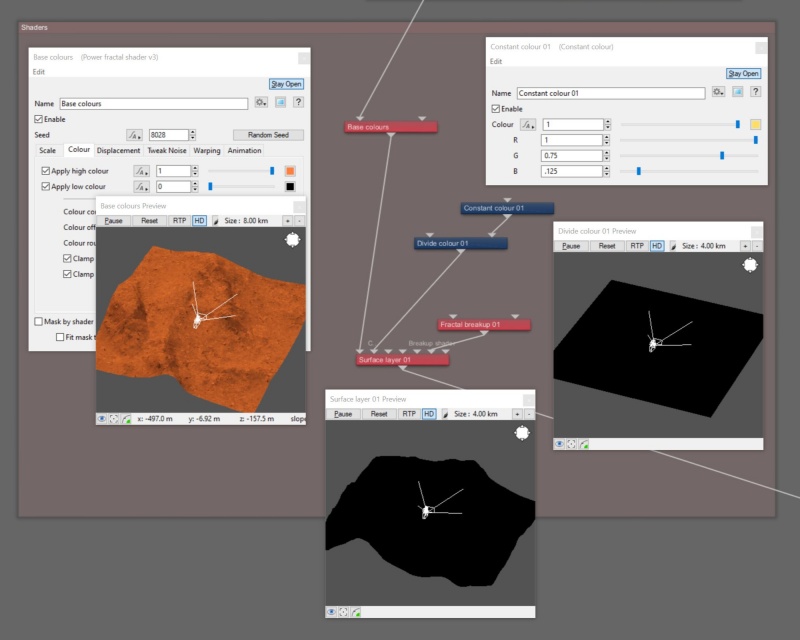

If a shader or function nodes are not connected to Input 2, the Main Input passes through to the Output.

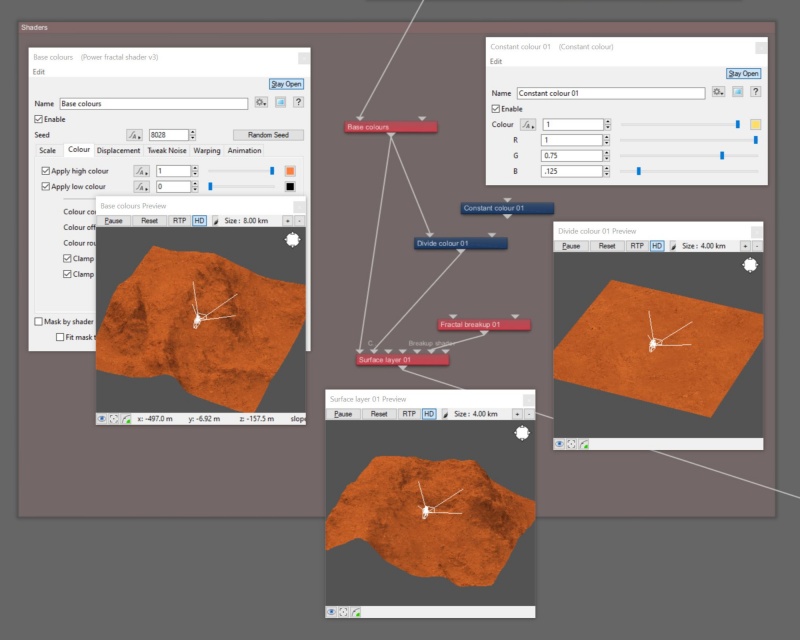

If a shader or function nodes are not connected to the Main Input, a value of 0, or black, is passed through the node.

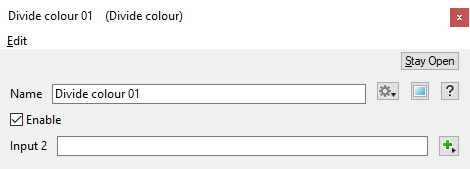

All nodes in this family have only one setting, which lets you assign a shader or function nodes for Input 2.
Settings:
- Name: This setting allows you to apply a descriptive name to the node, which can be helpful when using multiple Divide Colour nodes in a project.
- Enable: When checked, the node is active and the division operation will take place. When unchecked the colour values assigned to its Main Input, if any, are passed through, otherwise a value of 0 is passed through.
- Input 2: The values from the shader or function nodes assigned to this setting are used as the divisor to the Main Input values. When nothing is assigned, the Main Input values, if any, are passed through. If the Main Input is unassigned, the output from the node is 0.
