Build HSV Colour
Overview[edit]
The Build family of nodes allow you to construct colours or vectors. They let you input scalar values for each component. For the Build HSV node you can input values for Hue, Saturation, and Value.
Values from the Main Input are used as the basis for building the new value. If you do not assign a node to one of the other inputs, Hue, Saturation, or Value, then the value for that component is taken from the corresponding component from the Main Input. Here is an example, using a vector:
Input.x is 100
Input.y is 200
Input.z is 300
X scalar input is 500
Z scalar input is -400
The output vector will look like this:
Output.x is 500
Output.y is 200
Output.z is -400
As there is no scalar input for the Y component the y value from the input vector is used. Here is a diagram of the example above:

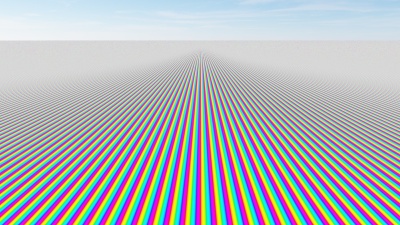

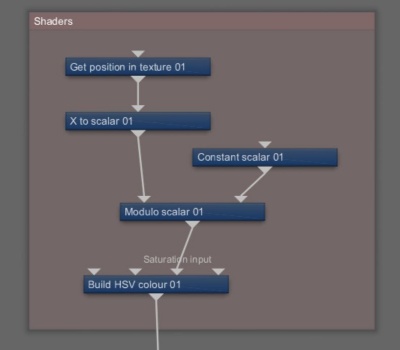

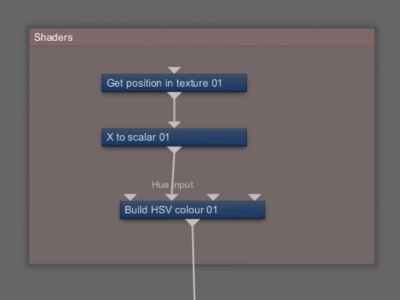

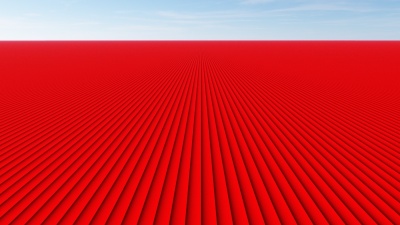

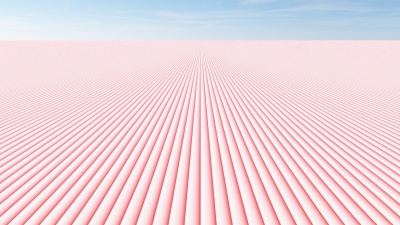

In the example images below, no shader or function nodes are assigned to the Main input. You can see how the Hue, Saturation, and Value results change as the value assigned to each input in increased from 0 to 1.
In the following example, a Constant colour node serves as the Main input, while the values assigned to Hue, Saturation, and Value inputs are increased from 0 to 1.
Settings:
- Name: This setting allows you to apply a descriptive name to the node, which can be helpful when using multiple Build HSV nodes in a project.
- Enable: When checked, the node is active and the conversion operation will take place. When unchecked the values assigned to its Main Input, if any, are passed through, otherwise a value of 0 is passed through.
- Hue input: The shader or function nodes assigned to this setting determine the colour of the output. You can think of the recommended values, 0 to 1, as shifting along the colour spectrum or rotating around a color wheel. If a value of 0 represented the red hue, a value of 0.5 would be 180 degrees opposite it, a Cyan colour, on the colour wheel.
- Saturation input: The shader or function nodes assigned to this setting determine the saturation of the hue. A value of 0 is desaturated, while a value of 1 is fully saturated.
- Value input: The shader or function nodes assigned to this setting determine the brightness of the hue. A value of 0 would result in black, while a value of 1 is the maximum brightness of the hue.
