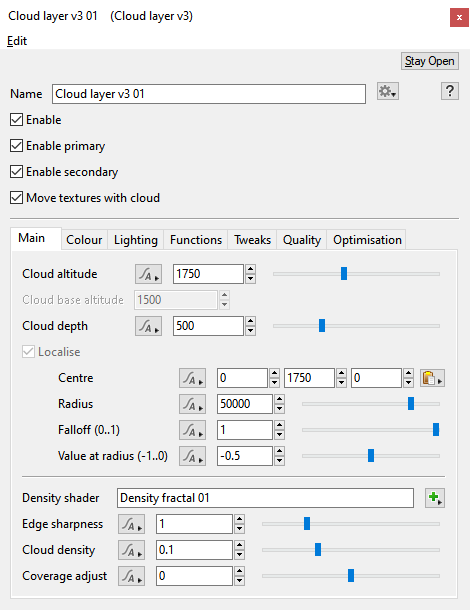

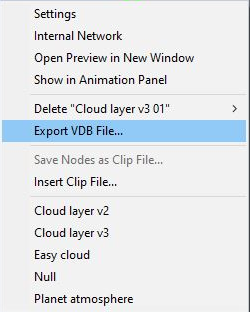

Cloud Layer v3


Overview[edit]

Settings:

    • Enable: When unchecked, or disabled, the cloud layer is completely turned off and will no longer contribute to the scene.
    • Enable primary: When unchecked, or disabled, the cloud layer will not be visible to the camera and will not show up in renders. However, if the "Enable secondary" checkbox is enabled the cloud layer will still affect scene lighting and be visible in reflections.
    • Enable secondary: When unchecked, or disabled, the cloud layer will not influence scene lighting or be visible in reflections.
    • Move textures with cloud: When checked, or enabled, the fractal noise patterns that internally define the cloud layer moves with the cloud layer as it’s repositioned using the Centre setting. When unchecked, or disabled, repositioning the cloud layer causes a different part of the fractal noise pattern to be visible.


Main Tab[edit]

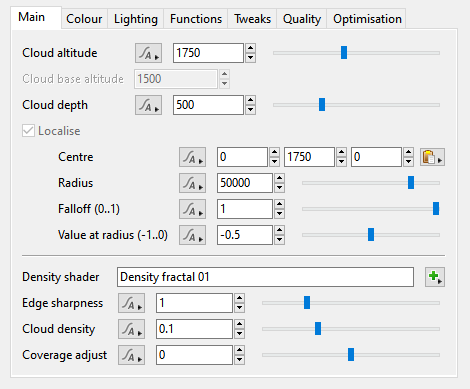

Main Tab

Settings:

    • Cloud altitude: This setting defines the mid-point of the Cloud Layer v3 between its base and top. It is also the same value as the “Y” component of the Centre setting, and changing either setting automatically updated the other.
    • Cloud base altitude: This setting is for display purposes only and can not be edited. It mirrors the “Cloud base (min)” display readout beneath the Cloud Node list. Changing the “Cloud altitude”, “Cloud depth” or “Centre” settings will cause this setting to update automatically.
    • Cloud depth: This setting defines the height, or depth, of the Cloud Layer v3. Half of its value extends below the “Cloud altitude” and half above. For example, if the "Cloud depth" and "Cloud altitude" values were 1,000 metres, then the Cloud layer v3 would extend from 500 metres to 1,500 metres in altitude.
    Cloud layer altitude and depth.
    • Localise: This setting is enabled by default and can not be edited because Cloud Layer v3 clouds require a localised voxel buffer to calculate light scattering.
    • Centre: This setting is the position coordinates of the Cloud Layer v3 within the project. The “Y” component value is the same as the "Cloud altitude" and changing either setting will automatically update the other.
    • Radius: This setting defines the maximum extent of the Cloud Layer v3.
    • Falloff (0..1): This setting controls the density of the cloud from its centre to the edge of the localisation sphere. A curve is applied to fade out the cloud as it approaches the edge. A value of 0 means there is no falloff and the clouds will have a hard edge at the sphere radius. Larger values make the clouds fade out more towards the edge of the sphere.
      Falloff = 0
      Falloff = 0.5
      Falloff = 1
    • Value at radius (-1..0): This setting controls opacity of the clouds at the edge of the radius.
      Value at radius = 0
      Value at radius = -0.25
      Value at radius = -1.0
    • Density shader: The shader or function assigned to this setting provides the Cloud Layer v3 with its basic shape or pattern. By default a Density fractal shader is automatically assigned when a new Cloud Layer v3 is created. To change the basic shape of the clouds, or to animate them over time, you need to modify the assigned shader or function.
      Cloud fractal shader assigned as Density shader.
      Image shader assigned as Density shader.
    • Edge sharpness:
      Edge shaprness = 1.0
      Edge sharpness = 100
    • Cloud density: Along with "Edge sharpness" this setting controls the transparency or opaqueness of the clouds within the cloud layer. Low values make the clouds look thin and let more light pass through them. Higher values make the clouds look thicker and denser, as well as darker because less light passes through them. Generally speaking we recommend using the "Cloud density setting" because the automatic sampling adjustments that derive from the "Ray-marching quality" are more strongly influenced by "Cloud density" than by "Edge sharpness". In other words, if you set "Cloud density" very high, the render quality will adjust accordingly to keep the noise levels the same, but if you do this with "Edge sharpness" it will not increase sampling to the same degree, meaning that you might have to increase the "Ray-marching quality" much higher than is typical for most scenes.
      Cloud density = 0.1
      Cloud density = 1.0
    • Coverage adjust: This setting controls the amount of clouds within the cloud layer. Low values reduce the amount of individual clouds and increase the amount of empty space between them. Increasing the value fills up the area with more individual clouds.
      Coverage adjust = -1.5
      Coverage adjust = 0.25


Colour Tab[edit]

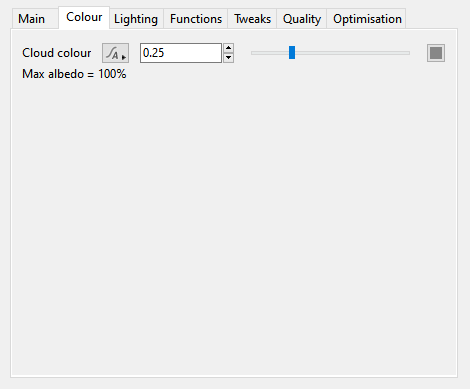

Colour Tab

Settings:

    • Cloud colour: This setting controls the colour of the cloud. Displayed beneath the setting is a readout indicating the level of albedo, which is a measurement of reflected light. The maximum albedo possible In the real world is 100% and a "Cloud colour" of 0.25 can result in 100% albedo if the clouds are dense enough due to the way volumetric colours are calibrated in Terragen. For realistic looking cloud layers, it is recommended to keep the albedo value to around 100%.
      Cloud colour = 0.25.  (sRGB 135,135,135)
      Cloud colour = 0.5.  (sRGB 135,135,135)
      Cloud colour = 0.5  (sRGB 165,160,186)
      Cloud colour = 0.5.  (sRGB 183,140,108)


Lighting Tab[edit]

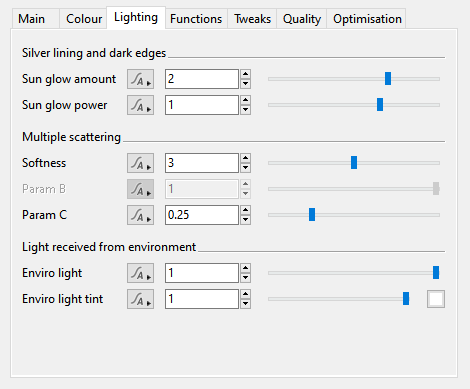

Lighting Tab

Silver lining and dark edges: The bright outline along the edge of the cloud known as the silver lining occurs when light is scattered by cloud droplets along the cloud's outer edge. This contrast between the change in brightness with respect to the angle of the sun, is most clearly seen when the Cloud Layer v3 clouds are back-lit by the sun. When the "Sun glow amount" and "Sun glow power" settings are set to 0, light is scattered uniformly in all directions decreasing the silver lining phenomenon.

    Sun heading 360 degrees.
    Sun heading 348 degrees
    Sun heading 270 degrees.
    Sun heading 180 degrees.
    Sun heading 90 degrees.
    Sun heading 22 degress.
  • Sun glow amount: When the sun is behind the cloud layer and opposite the observer (camera), increasing the "Sun glow amount" will scatter more light within the cloud, brightening the highlights of the cloud, especially in the area of the silver lining effect. When the sun is behind the observer, increasing the "Sun glow amount" causes more light to be absorbed by the cloud therefore less light to be scattered and the clouds look less bright.

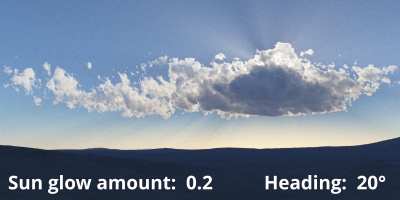

    Sun glow amount = 0.2. Sun heading 20 degrees.
    Sun glow amount = 4.  Sun heading 20 degrees.

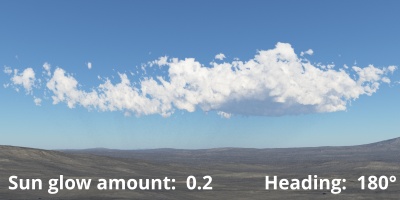

    Sun glow amount = 0.2.  Sun heading 180 degrees.

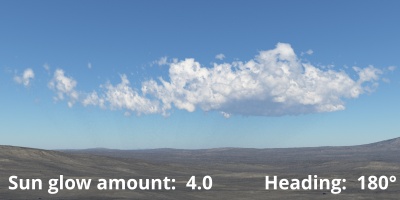

    Sun glow amount = 4.  Sun heading 180 degrees.


  • Sun glow power:

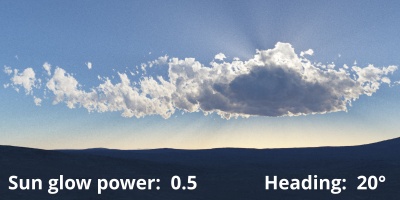

    Sun glow power = 0.5.  Sun heading 20 degrees.
    Sun glow power = 1.5.  Sun heading 20 degrees.

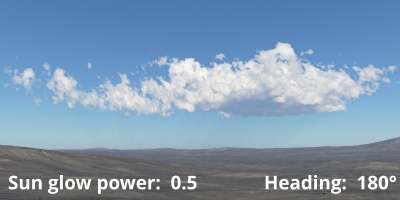

    Sun glow power = 0.5.  Sun heading 180 degrees.
    Sun glow power = 1.5.  Sun heading 180 degrees.


Multiple scattering: Cloud Layer v3 clouds calculate internal light by scattering rays through the voxels using principles from physically based rendering. Terragen’s cloud shader is optimized to approximate hundreds of scatters within the same volume, but can limit the number of bounces between separate cloud layers or surfaces.

  • Softness:
    Softness = 0
    Softness = 3
    Softness = 6
  • Param B: This setting is not implemented in Cloud Layer v3 and can not be edited.
  • Param C:
    Parm C = 0.075
    Parm C = 0.25 (default)
    Parm C = 1.0


Light received from environment:

    • Enviro light: As of Terragen 4.5 this setting has no effect on Cloud Layer v3 type clouds.
    • Enviro light tint: As of Terragen 4.5 this setting has no effect on Cloud Layer v3 type clouds.


Functions Tab[edit]

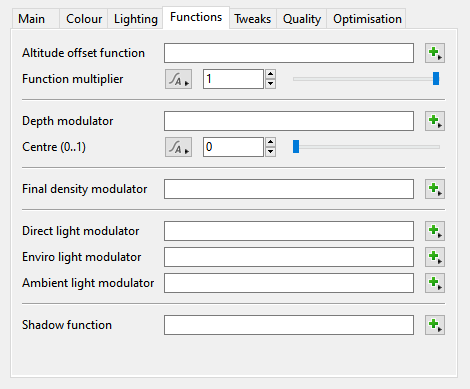

Functions Tab

Settings:

    • Altitude offset function: The shader or function nodes assigned to this setting apply an offset to the clouds within the cloud layer, up to the extent of the cloud layer’s depth. In other words, you can’t offset clouds beyond the boundary of the cloud layer itself. The offset value is in metres, so if the output range of the assigned shader or function nodes is 0 to 1, you can multiply the output via the “Function multiplier”. Each cloud layer has a profile which is determined by the settings located on the Tweaks tab, such as “Taper top and base”. When the clouds do not fill the cloud layer completely, due to the cloud profile or low “Cloud coverage” then the “Altitude offset function” can shift the clouds up and down, limited to the extent of the cloud layer’s depth.
      Altitude offset function is off.
      Altitude offset using Simple shape shaders.
    • Function multiplier: Multiples the output of the “Altitude offset function”. This can be used to increase, decrease, or invert an offset by entering a negative number.
    • Depth modulator: The shader or function nodes assigned to this setting reduce the depth of the clouds within the cloud layer. Note that the cloud layer’s dimensions as defined by the “Cloud altitude”, “Cloud depth”, and “Radius” settings on the Main tab, does not change, only the vertical height of the clouds within. For example, assigning a Constant scalar node with a value of 0.5 will reduce the height of the clouds by 50%. The anchor point at which the modulation takes place is defined by the “Centre (0..1)” setting below.
      Depth modulator off.
      Depth modulator on. Centre(0..1) = 0
      Depth modulator on.  Centre(0..1) = 0.5
      Depth modulator on.  Centre(0..1) = 1.0

      Depth modulator off.
      Simple shape shader assigned as Depth modulator.
      Depth modulator off.
      Simple shape shader assigned as Depth modulator.
      Simple shape shader assigned to Depth modulator in above example images.
    • Centre (0..1): This setting controls where the modulation effect is anchored or remains unchanged. A value of 0 causes the base of the cloud to remain unaffected, essentially compressing the top of the clouds towards the base. A value of point 0.5 causes the modulation effect to be anchored at the vertical center of the cloud layer and causes the base and top of the clouds to be pulled towards the center. A value of 1.0 causes the top of the clouds to remain unaffected while pulling the base of the clouds towards the top.
      Depth modulator off.  Centre(0..1) = 0
      Depth modulator on.  Centre(0..1) = 0
      Depth modulator on.  Centre(0..1) = 0.5
      Depth modulator on.  Centre(0..1) = 1.0
    • Final density modulator: The shader or function nodes assigned to this setting reduce the final density or opacity of the cloud layer after the built-in profile and all other effects have been calculated. This modulator does not have any effect on the shape of the clouds. For Cloud Layer v3 clouds this setting is very similar to the “Cloud density” setting under the Main tab.
      Final density modulator off.
      Cloud fractal shader assigned as Final density modulator.
      Simple shape shaders assigned to Final density modulator.
      Distant shader assigned to Final density modulator as a gradient ramp.
    • Direct light modulator: The shader or function assigned to this setting is used as a multiplier to the direct lighting which illuminates the cloud layer, it has no effect on areas of the cloud illuminated by indirect lighting (global illumination). It can be used to modify the colour or brightness of a cloud layer where it encounters direct lighting.
      Direct light modulator off.
      Red Constant shader applied as Direct light modulator.
      Power fractal applied as Direct light modulator.
    • Enviro light modulator: As of Terragen 4.5 this setting has no effect on the cloud layer.
    • Ambient light modulator: The shader or function assigned to this setting is used as a multiplier to the cloud layer’s Ambient setting. In order for the modulator to have an effect the Ambient value must be greater than 0.
      Ambient color and intensity only.
      Ambient modified by a Power fractal shader.
      Ambient off.  Ambient modulator off.
      Ambient modulated by Power fractal shader.  Other project lights on.
    • Shadow function: This setting can be used to define additional regions of shadow on the Cloud Layer v3 for any direct light sources that cast shadows. This may be useful to remove light in certain regions of the Cloud Layer v3 clouds when correct shadows of surfaces would be too expensive to calculate. Where the value is 1, or white, the Cloud Layer v3 will receive no light contribution from light sources that have shadow casting enabled. Where the function is 0, or black, the Cloud Layer v3 receives all the light from light sources. This function has no effect on the Enviro Light or light sources that do not have shadows enabled.
      Shadow function off.
      Distant shader assigned to Shadow function.


Tweaks Tab[edit]

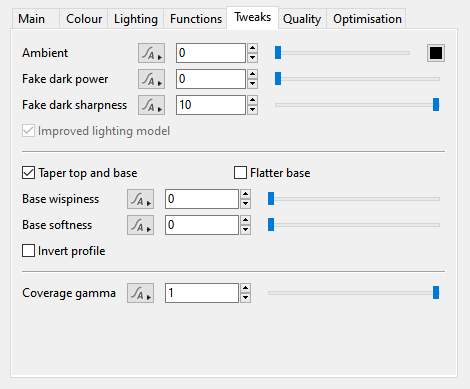

Tweaks Tab

Settings:

    • Ambient: This setting defines a colour and intensity which is added to the lighting that illuminates the cloud layer. While disabled by default, so that only direct and indirect lighting (global illumination) affect the cloud layer, a practical example for using this setting would be to increase the overall brightness of the cloud layer. The colour and intensity of the Ambient setting can be modulated by the "Ambient light modulator".
      Ambient off.
      Ambient = 1.0
    • Fake dark power: This setting is intended for planetary orbit views, as a way to artificially darken the cloud layer if it appears too bright, especially near the terminator, the line that divides the daylit side and the dark night side of a planetary body. Higher values increase the darkness of the cloud layers.
      Fake dark power = 0
      Fake dark power = 1.
    • Fake dark sharpness: This setting is intended for planetary orbit views, as a way to artificially adjust the falloff of the terminator line on the cloud layer. In order for this setting to have an effect, the "Fake dark power" must be greater than 0. Higher values result in a quicker falloff or sharper transition.
      Fake dark sharpness = 1
      Fake dark sharpness = 100

    Cloud profile: Cloud Layer v3 clouds have an internal vertical profile that shapes the cloud. The profile inhibits the clouds from reaching the very top and bottom of the cloud layer at full density, thus avoiding an unpleasant flat top and bottom to the cloud layer and is designed to give reasonable cloud shapes, considering it has no prior knowledge of the function nodes chosen as input. You can make simple changes to the profile via the "Invert profile" and "Flatter base" options. The profile is widest at 25% of the “Cloud depth” when “Flatter base” is disabled.

    • Taper top and base: When checked, this setting enables the internal vertical profile that shapes the cloud. When unchecked, clouds within the cloud layer can extend up to the limits of the cloud layer if the “Cloud density” is high enough, but then will stop abruptly.
      Cloud layer v3 with Taper top and base disabled.
      Cloud layer v3 with Taper top and base enabled.
    • Flatter base:
      Cloud layer v3 with Flatter base enabled.
    • Base wispiness:
      Cloud layer v3 with Base wispiness = 1
    • Base softness:
      Cloud layer v3 with Base softness = 1
      Cloud layer v3 with Base wispiness & Base softness = 1
    • Invert profile:
      Invert on.
      Flatter base on.
      Base wispiness = 1.0
      Base softness = 1.0
      Base wispiness and softness = 1.0
    • Coverage gamma:
      Coverage gamma = 1.0
      Coverage gamma = 1.0


Quality Tab[edit]

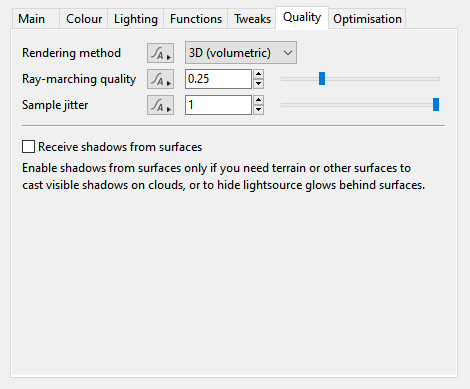

Quality Tab

Settings:

    • Rendering method: This popup menu has two options which determine the way in which the cloud layer is rendered. Cloud Layer v3 clouds are based on procedural 3D textures and volumetric data therefore the 2D rendering method, which samples one point per pixel midway between the base and top of the cloud, is not recommended. The 3D (volumetric) rendering method uses ray-marching techniques to accumulate the density of the Cloud Layer v3.
      Rendering methods.
    • Ray-marching quality: This setting provides a way to reduce render times by evaluating fewer samples within the volume along the ray. In many circumstances the quality of a rendered image using the default value of 0.5 is almost indistinguishable to the quality at a value of 1.0 but at a faster render time. Using too low a value, such as 0.1 or less, can cause the shadows cast by the cloud layer onto itself, to appear lighter or more diminished.
      Ray-marching quality = 0.1
      Ray-marching quality = 1.0
    • Sample jitter: This setting provides an offset for each ray-marched segment of the volume being sampled. A value of 0 means the sample point is located at the center of each ray-marched segment being evaluated, which may introduce unwanted banding in the final rendered cloud layer. A value of 1, shifts the sample point along the ray, but still within the ray-marched segment being evaluated. This introduces noise into the final rendered cloud layer, however the anti-aliasing process averages all the neighboring rays together to create a better approximation of the volume being sampled.
      Sample jitter = 0.1
      Sample jitter = 1.0
    • Receive shadows from surfaces: This setting is disabled by default because generally speaking, cloud layers are positioned higher in altitude than the surrounding terrain and therefore would not receive shadows from the terrain. When cloud layers are positioned lower than the surrounding terrain and you want shadows to be cast from the terrain onto the cloud layers, enable the setting by clicking on the checkbox. Note, this may increase render times.
      Receive shadows from surfaces disabled (default).
      Receive shadows from surfaces enabled.


Optimisation Tab[edit]

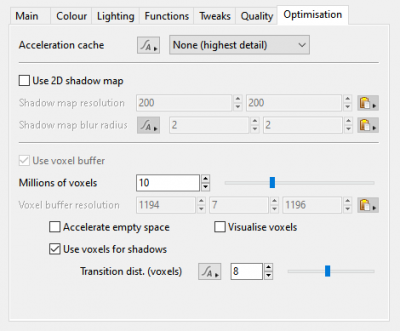

Optimisation Tab

Settings:

    • Acceleration cache: This popup provides five options that may allow the Cloud Layer v3 to render faster. The "Acceleration cache" is like a high resolution voxel buffer in which each option increases the size of the sample point by a factor of two. Unfortunately, this can also introduce unwanted artifacts into the rendered image, especially when the camera is looking towards the sun, and for this reason the recommended setting is None (highest detail). The * Acceleration cache" only affects shadows and reflections cast by the Cloud Layer v3 cloud.

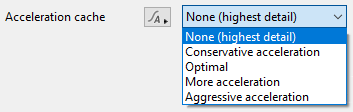

      Acceleration cache options.
    • Use 2D shadow map: Shadow maps were originally designed to avoid long render times when extreme anti-aliasing values would not resolve noise issues in the shadows cast by a cloud layer. When enabled, this setting generates a 2D map for the cloud layer at the start of the render process. You can think of the shadow map as a 2D image of the cloud layer’s density values from the top view. Internally, Terragen positions the shadow map at approximately the center of the cloud layer on the “Y” axis and as rays are traced through the cloud layer the density values are used to modify the lighting. Shadow maps can be used to cast shadows onto the terrain, objects and other cloud layers, but not the cloud layer itself. While typically faster than ray tracing volumes, Cloud Layer v3 clouds require a voxel buffer to be calculated anyways, so for these cloud types we recommend not using "2D shadow maps".
    • Shadow map resolution: These values determine the width and height of the shadow map created for the cloud layer. Higher values take longer to calculate but result in more detail, while lower values tend to be softer and have less contrast, due to less detail. The cloud layer’s radius plays an important role in determining the level of detail of the shadow map. For example, a cloud layer with a radius value of 50,000 metres and mapped into 200 pixel by 200 pixel shadow map will appear softer than a cloud layer with a radius value of 20,000 metres mapped into the same resolution.
      Shadow map resolution = 200 x 200.
      Shadow map resolution = 400 x 400.
      Shadow map resolution = 800 x 800.
      Shadow map resolution = 1600 x 1600.
      Shadow map off.
    • Shadow map blur radius: When a cloud layer is animated its shape can potentially change every frame which could introduce unwanted flickering into the shadows cast by it. The "Shadow map blur radius" was designed to reduce the flickering by blurring the shadow map for the cloud layer. These values determine the blur radius in pixels to apply to the shadow map after it has been internally rendered, therefore the "Shadow map resolution" values are important to take into consideration. For example, a "Shadow map blur radius" of 2 will have a greater softening effect on a "Shadow map resolution" of 100 pixels by 100 pixels compared to a Shadow map resolution of 1000 pixels by 1000 pixels. The higher the "Shadow map blur radius" value the softer, or more blurred, the shadow map will be.
      Blur radius = 0
      Blur radius = 0.5
      Blur radius = 1
      Blur radius = 2
    • Use voxel buffer: When enabled, a voxel buffer is created based on the "Millions of voxels" value. For Cloud Layer v3 clouds the setting is automatically enabled and ghosted because these cloud types require the voxel buffer to calculate light scattering.
    • Millions of voxels: Sets the maximum number of sample points, or voxels, that will be generated to form the voxel buffer. Higher values create more sample points, which results in having more detail in which to calculate shadow and lighting solutions. This can have a large effect on both render times and RAM use.
      Millions of voxels = 0.02
      Millions of voxels = 1.0
      Millions of voxels = 10.0
    • Voxel buffer resolution: Automatically distributes the "Millions of voxels" in a grid-like pattern across the three axes of the voxel buffer.
    • Accelerate empty space: When enabled, empty voxels in the voxel buffer are first identified in order that they may be skipped and not calculated during the render. This can result in render speed improvements on certain types of clouds such as those used globally.
    • Visualise voxels: When enabled, the voxel buffer for the cloud layer is displayed in the 3D Preview and used for rendering the Cloud Layer v3.
      Visualise voxels on.  Millions of voxels = 0.001
      Visualise voxels on.  Millions of voxels  = 1.0
      Visualise voxels on.  Millions of voxels - 50.0
    • Use voxels for shadows: When enabled, the voxel buffer for the cloud layer will be used for cast shadows. This can result in faster render times and avoid noisy shadows, but may produce shadows with less detail.
    • Transition dist. (voxels): This setting, measured in voxels, is the transition point at which shadows are calculated using the cloud layer’s actual volume instead of voxels. This leads to more accurately cast shadows when the shadow rays are shorter, such as bouncing around inside the cloud or when close to the terrain.
