Masking Populations with Inverted Fractals

From Terragen Documentation from Planetside Software
Jump to: navigation, search

There are times when you want to create distinct bands of certain populations, as shown in this reference image in which there are patterns of warm yellowish colored trees juxtaposed with cool dark-green trees.

Reference showing bands of tree populations.

In some cases sharing a mask between two populations and simply enabling the “Invert density shader” checkbox on one of them may achieve this result.

Two Population nodes sharing the same node for their Density shader input.  Invert density shader is enabled on the second population.

But often times when a mask is used to limit the instanced objects to a section within the areas as defined by the population’s “Area length a” and “Area length b” parameters, then inverting the mask may not provide the solution you’re looking for. This is because inverting the mask would allow the instances to be generated all the way to the extent of the area as defined by the population’s “Area length a” and “Area length b” parameters.

Inverting the mask for the second Population in orange fills the entire area as defined by the population's Area Length a/b parameters.

Let’s explore how to use two almost identical Power Fractals to provide the masks we need. To create the first mask that will be used to band certain species of trees together, right-click in the Node Network view and select “Create Shader”, then “Colour Shader”, then “Power Fractal shader v3”.

Adding a Power Fractal shader from the Node Network layout.

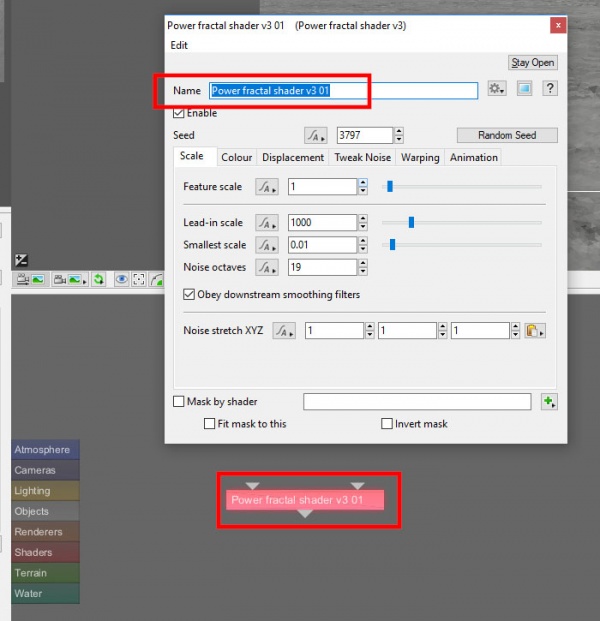

Double click on the Power Fractal node to open up its dialog pane, then give it a descriptive name.

The Power Fractal shader node Scale tab

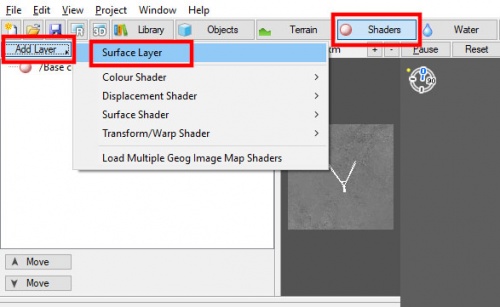

To help visualize the mask on the terrain, we can add a new shader by clicking on the “Shader” button located below the main menu, then click “Add Layer” and select “Surface Layer”.

Adding a Surface Layer

Clicking the checkbox to "Enable test color" will allow us to quickly see exactly where the shader is being applied to the terrain. In the Node Network view drag the output of the Power Fractal node to the input of the Surface Layer’s “Mask by shader” input.

Connect the output of the Power Fractal shader to the Surface Layer's Mask by shader input

We want to create a fairly high contrast mask without a lot of roughness to begin with, so on the Power fractal shader’s Colour tab, set the “Color contrast” value to “1.0”, the “Color roughness” value to “0.0”, and the “Color offset” value to about “-0.3”.

The Power Fractal Colour tab

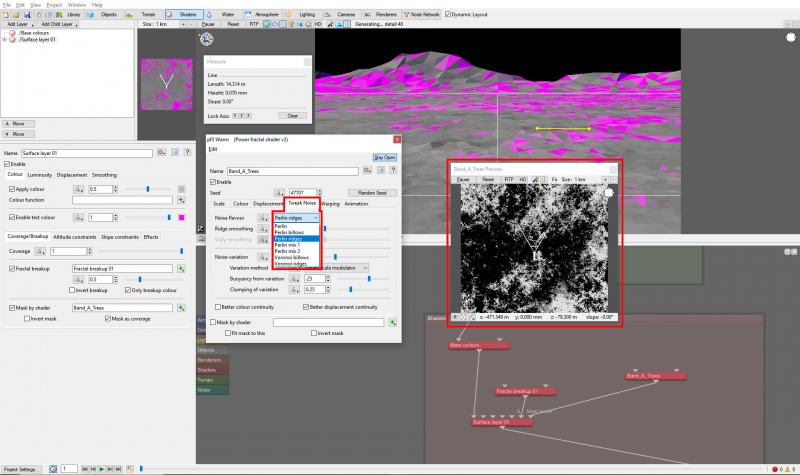

On the Tweak Noise tab set the “Noise flavour” to “Perlin ridges”. The “ridge” noise patterns are the opposite of the “billow” patterns and means they have narrow sharp ridges which drop down to rounded bottoms.

The Power Fractal Tweak Noise tab

On the Warping tab set the “Lead-in warp effect” to “1 Octave Perlin warp” and the “Lead-in warp amount” value to “2.0”. This will warp and displace the fractal pattern in a random wavy fashion.

The Power Fractal Warping tab

On the Scale tab adjust the “Feature scale” and “Lead-in scale” to fit your terrain and scene. Use the measuring tool if necessary.

The Power Fractal Scale tab.

Once you’re happy with the mask, copy and paste the Power fractal node to duplicate it. Double click on the new power fractal node to open its dialog window, then give it a descriptive name and go to its Colour tab.

Our goal is to invert the fractal noise pattern colours. First uncheck the “Apply high colour” checkbox to disable the “Apply high colour” parameter. The effect of this is to pass “black” or a value of “0.0” through this part of the fractal pattern and the Power fractal node’s output. Next, check the “Apply low colour” checkbox to enable it and set the “Apply low colour” value to “white” or “1.0”. Now we have the exact inverse of the other Power fractal.

To visualize this second mask, add another Surface Layer and assign the second power fractal to its “Mask by shader” input. Enable the Surface Layer’s test colour and change the test colour to anything other than the default pink.

The second Surface Layer's Test Colour set to blue.

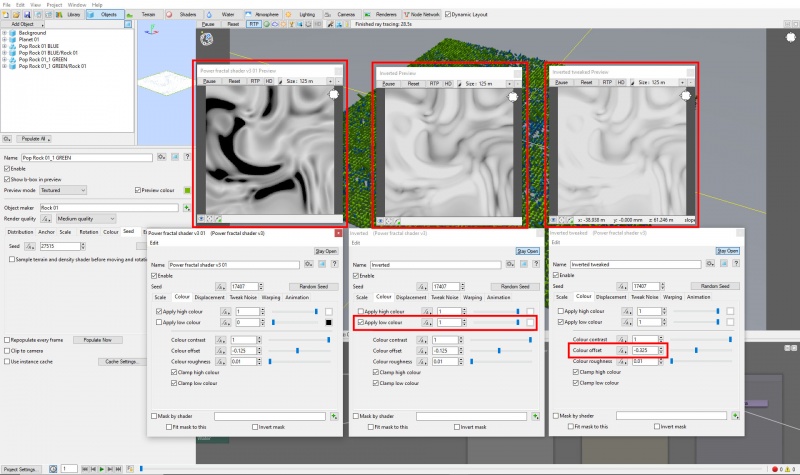

An added benefit to this method, is now that you have two Power fractals, you can make subtle adjustments to the parameters of one of the patterns to create variations or adjustments if needed. For example, you could adjust the “Colour offset” value to expand or contract the shape of the fractal pattern which would allow the instanced objects of one population to encroach into the pattern of the other population.

On the left is the original fractal pattern, in the middle is the inverted fractal, and on the right the colour offset value is modified slightly.

Now that we have our two masks set up, we can apply them to a population.

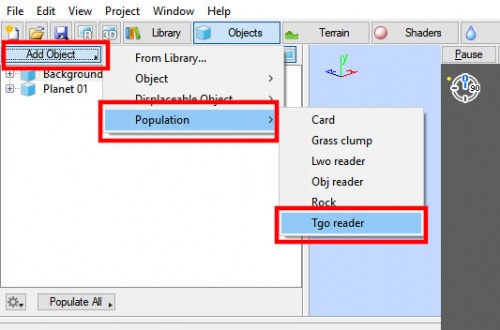

Add a new population.

Add the first population, and so that we can visualize exactly how the instances are being distributed, zero out the “Spacing variation in a,b” and the “Maximum Y rotation” values. Apply one of the power fractals as the Density shader then click "Populate Now", and the result will show an aligned grid of trees exactly as defined by the mask.

The tree objects are populated only in the pink areas.

Repeat this procedure for a second group of trees using the other power fractal as the mask.

The second population of trees constrained to the blue areas.

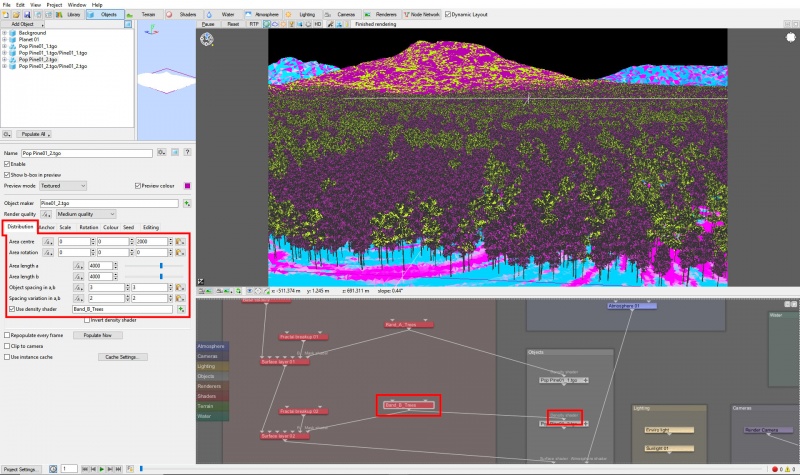

Now that you’ve established the two masking bands and see that they’re working as desired, you can randomize the populations by returning some value to the “Spacing variation in a,b” and their rotations, and minimum and maximum scales.

Randomizing the tree populations.

Next, you can add additional tree populations and choose which band they will be distributed in by selecting the appropriate power fractal as the mask.

Third and fourth populations added and assigned to one of the masking bands.

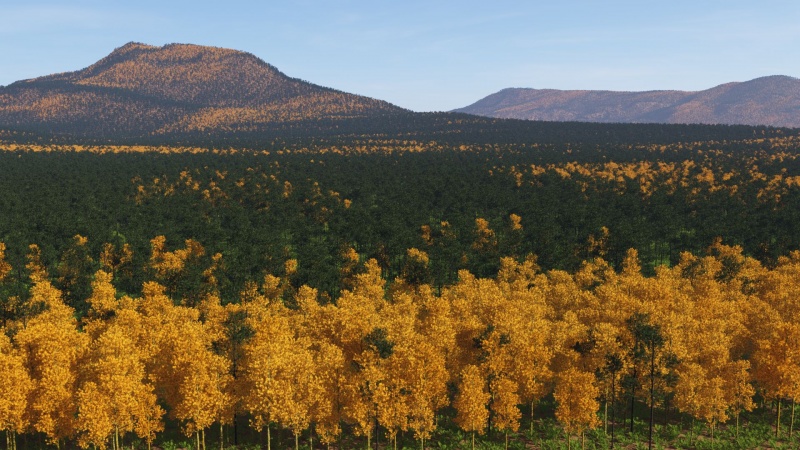

Here's a render of the populated forest showing the results of using this Density shader masking approach. You can clearly see the distinct bands of the tree populations.

Final populations

Download the Terragen project file for this tutorial here.
